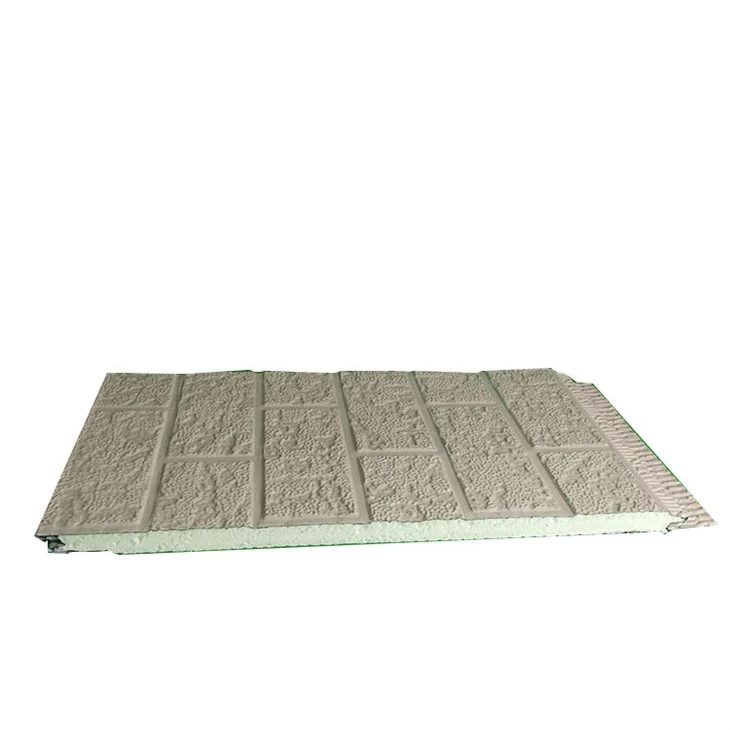

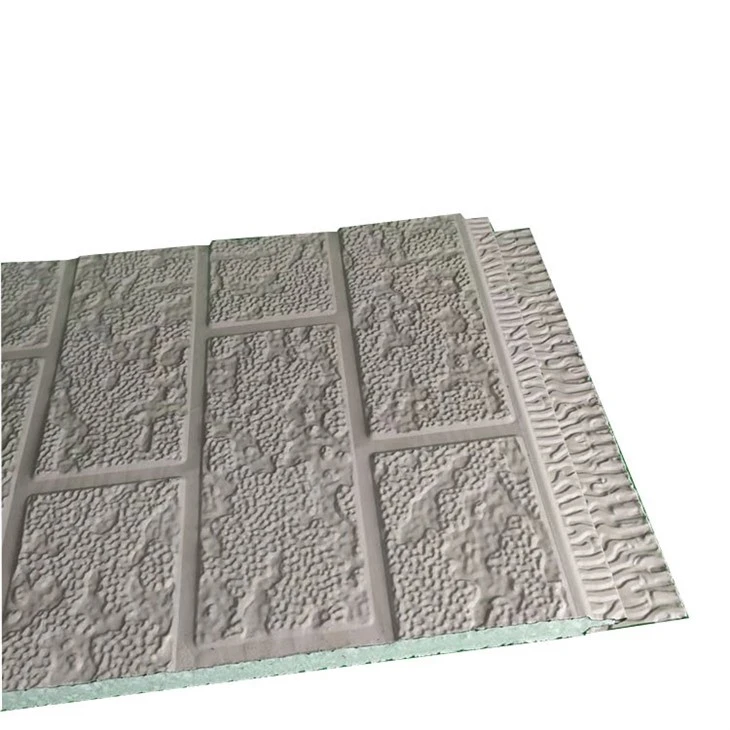

Prefabricated Metal Siding Panel
Prefabricated metal siding panel:waterproof , fireproof , thermal insulation ,saving cost and time ,soundproof ,many design and color for choice
Thermal insulated prefabricated metal siding panel
Specifications
|
1 Easy Installation : |
Just screw the product onto steel/wooden frame. |
|
2 Cost Reduction : |
Save up to 60% of build time & labor cost. |
|
3 Energy-saving : |
Heat conducting efficiency:0.024W/m.k |
|
4 Thermal Insulation : |
R-VALUE:0.55 m2*k/w |
|
5 Light Weight : |
Only 3.4 Kg/m2(with 0.27mm thickness steel) |
|
6 Eco-friendly : |
Minimum construction waste,100% reusable. |
|
7 Easy Maintain : |
No need to repaint |
|
8 Fire-resistant : |
Fire resistance(core):B1 grade |
|
|
Oxygen index test method:26.2 % |
|
|
Combustion growth rate exponential:211 W/s |
|
9 Waterproof : |
Water absorbing capacity(core):0.9 (V/V)% |
|
|
Impermeability(panel):1.5 mm |
|
10 Earthquake proof : |
Maximum bending capacity:1.46 Kn/m² |
|
11 Long-lasting : |
Peeling resistance:95% |
|
|
Cohesional strength:0.14 Mpa |
|
|
Compressive strength:0.21 Mpa |
|
12 Decoration : |
Hundreds of colors and designs of various stunning effects. |
|
13 length: |
2000mm-6000mm(78.74inch-236.22inch) |
|
14 Width: |
Total 42mm/1.654inch and valid 380mm/14.96inch |
|
15 Material: |
Surface steel: Al-Zn alloy coated steel (Aluminum 55%,Zinc 43.5%,Silicon 1.5%,ect.) |
|
|
Core material:Polyurethane,40kg/m3 |
|
|
Bottom material:Aluminum foil glass fiber |
|
16 After-sale Service |
Online technical support or site instruction |
|
17 Package |
10 pieces/carton,8pieces/carton |
|
18 Container loading |
20’GP:1600sqm 40’HC/HQ : 3800 sqm 40’NOR:3300 sqm |
Installation method
Color and design , texture
Package
Metal faced insulated sandwich panels is packed by standard carton for export . 8/10pcs per box .
Length :2900/3800/3900mm
Packing width :420mm
Height :140/170mm
FAQ
Q: How long is your delivery time?
A: Standard products: 1~5 days. Customized products: 10-20 days.
We have 4 advanced production lines with daily capacity of 15,000 m², and kings of raw materials in our warehouse to guarantee
100% delivery on time.
Q: How do you guarantee the quality?
A: Each product has strict testing procedures (from raw material selecting, manufacturing, quality checking, packing, and loading etc.), and we are ready to supply 24hours after-sale-service.
Q: Can you do OEM?
A: Yes, we not only do OEM, but also do ODM. We can customize your logo on goods and package.
Q:What else can you provide?
A:We not only provide decorative outdoor wall panel, also offer various of exterior and interior products.
Besides, we are willing to support you with other products which you may looking for.
