Metal Coated Sandwich Panels Walls Decorative House
Metal coated sandwich panels walls can be widely used in many engineering fields, such as municipal construction, apartment, office hall, villa, garden scenic spot, old building reconstruction, guard booth, etc. This building material is not only suitable for newly built brick concrete structures, frame structures, steel structures, light weight houses and other types of buildings, but also for the decoration and energy-saving renovation of existing buildings, as well as indoor and outdoor decoration.
Products Description
1 It has excellent insulation properties and excellent cold resistance compared to traditional exterior wall insulation and decoration materials. It greatly reduces the energy consumption of heating and cooling, thereby saving energy expenditure. The product has a high cost-effectiveness.
2 Metal carved boards have stable chemical and physical structures that do not decompose and mold, are non radiative, non polluting, and are environmentally friendly. This plate can also be flexibly disassembled and reused and installed on other buildings. The leftover materials from construction can also be recycled and reused, which greatly reduces Construction waste during construction. It is a high-quality, high-performance environmental protection product. The integrated panel for external wall insulation and decoration is easy to clean, durable, and has a long service life.
Thermal and Environmental
Reduce Noise
Fireproof and Saving building cost
Waterproof and Lightweight
Long service time and warranty , high durable polyester paint
Let metal wall cladding panel decorating your home

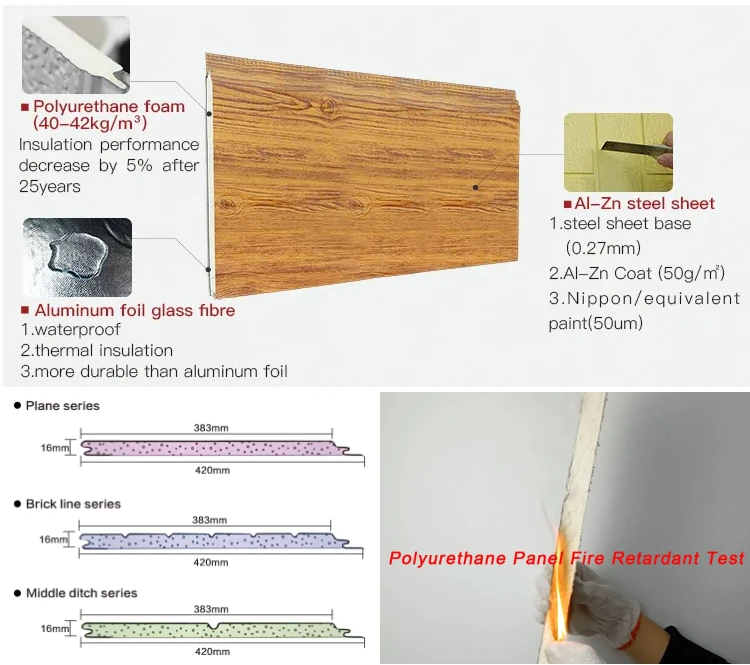

Thickness 16mm , 20mm 25mm
width 380mm ,length 2000-6000mm
Galvanized steel(aluminum zinc plate steel sheet) 0.27MM /0.25MM/0.32MM
The paint is high durable polyester paint, with ANTI-UV function ,over 15 years not fade . Has stronger antioxidant and anti-corrosion properties.
High rigid thermal polyurethane foam 40KG/M3
With a thermal insulated function .Because the PU foam is high density , so it has soudproof function as well . Besides , with flame retardant
Waterproof aluminum foil paper
Aluminium foil with good ductility is used at the bottom of the board, which also has the function of waterproof and moisture-proof to prevent moisture from entering the room
Technical Specifications
|
Thickness |
16/20 mm |
Fire resistance level |
B1/B2 |
|
Width |
383mm |
Size toleranc |
-/+2mm |
|
Length |
2000mm~6000mm |
Tensile bond strength |
0.17MPA |
|
Surface steel |
Galvalume,C type |
Wind load value |
9 KPA |
|
Steel alloy composition |
Aluminum 55%,Zinc 43.5%,Silicon 1.5%,ect. |
Package |
10 pieces/carton,8pieces/carton |
|
Core material |
Polyurethane |
OEM |
Logo and panel size |
|
Closed cell rate |
90%~95% |
Container load |
20GP:1600sqm(panel length 1.82m) |
|
Panel weight |
3.5-3.7 kg/m2 |
Port |
QINGDAO |
|
Heat conductivity |
0.018-0.024 w/m*k(in theory) |
Brand |
DIBAIER |
|
Water absorption |
≤3 % |
Oxygen index |
≥26 % |
Technical Specifications
-
Thermal insulation
-
Resistant to dust and dirty
-
Extremely durable
-
Light weight
-
Saving building cost and time
-
Easy installation
-
Longer life
The application case
The Waste sorting room
Waste sorting is more conducive to resource utilization and environmental protection.
The Public toilet
This one is a Pubilc toilet .It is built by meatl siding panel ,light steel frame ,insulation rock wool， OSB board . The metal wall panel not only used to toilet and waste sorting room , but also used to decor exterior wall , old house renovation , prefab house , modular house etc .
Package
Standard carton for export . 8/10pcs per box .
Length :2900/3800/3900mm
Packing width :420mm
Height :140/170mm
FAQ
Q: How long is your delivery time?
A: Standard products: 1~5 days. Customized products: 10-20 days.
We have 4 advanced production lines with daily capacity of 15,000 m², and kings of raw materials in our warehouse to guarantee
100% delivery on time.
Q: How do you guarantee the quality?
A: Each product has strict testing procedures (from raw material selecting, manufacturing, quality checking, packing, and loading etc.), and we are ready to supply 24hours after-sale-service.
Q: Can you do OEM?
A: Yes, we not only do OEM, but also do ODM. We can customize your logo on goods and package.
Q:What else can you provide?
A:We not only provide decorative outdoor wall panel, also offer various of exterior and interior products.
Besides, we are willing to support you with other products which you may looking for.
