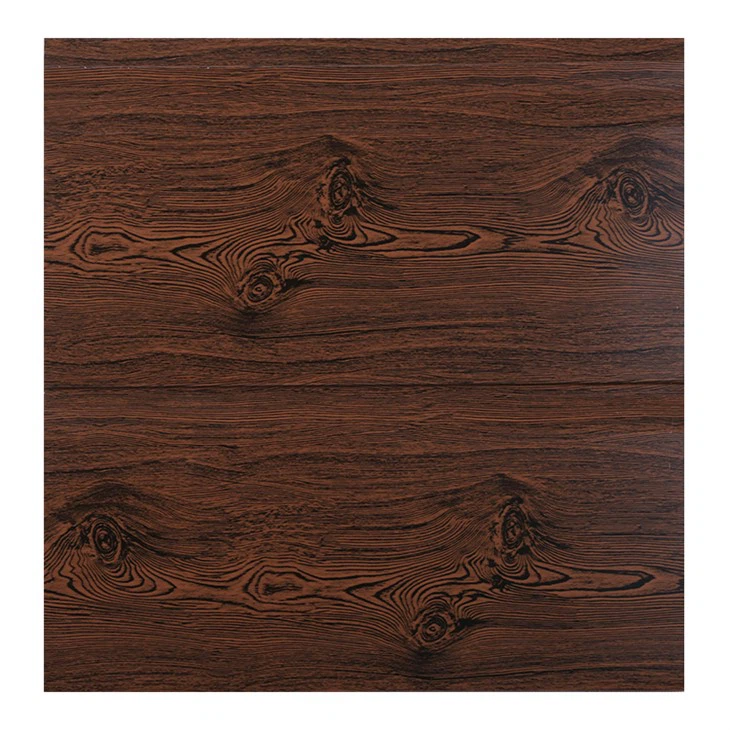

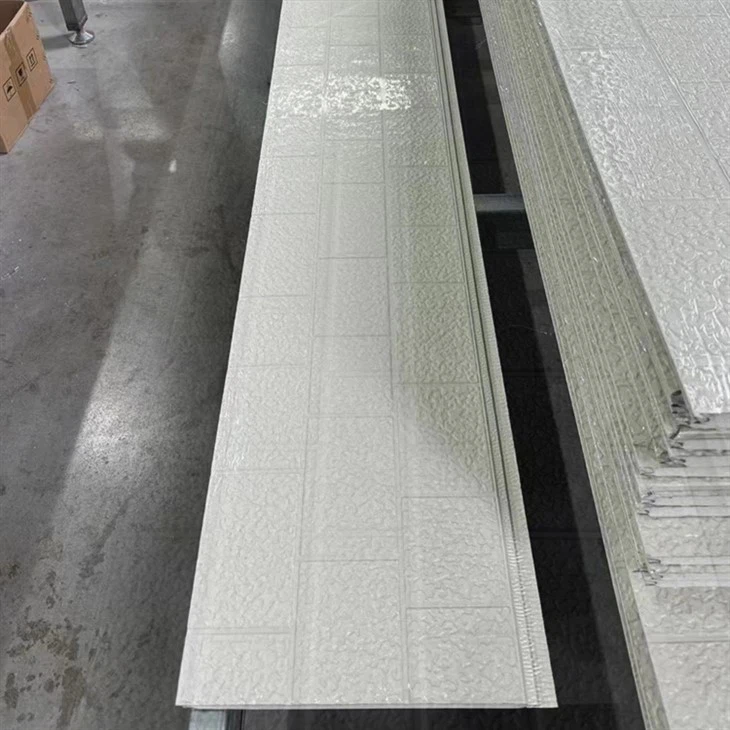

Decorative Insulated Metal Panels
Decorative insulated metal panels are composited in our factory with a veneer layer and a high-efficiency insulation core material, forming a continuous, thermally bridge-free insulation barrier. At the same thickness, the insulation effect is 1.5 times that of traditional mortar leveling and rock wool cladding systems. Significant energy-saving advantages.
Core Advantages
Integrated Energy Saving
Decorative insulated metal panels are composited in our factory with a veneer layer and a high-efficiency insulation core material, forming a continuous, thermally bridge-free insulation barrier. At the same thickness, the insulation effect is 1.5 times that of traditional mortar leveling and rock wool cladding systems. Significant energy-saving advantages.
Rich Facade Expression
Panels can be made from aluminum alloy, galvanized steel, stainless steel, and other base materials. Surface treatments include fluorocarbon spraying and polyester powder coating, with hundreds of colors available. The panels can be manufactured into flat, corrugated, corrugated, and perforated forms through bending, punching, pressing, and wire drawing processes. Different panel sizes and joint types can also be combined to meet the needs of modern minimalist facades.
Lightweight and High-Strength
Panel installation can be done entirely dry, requiring no cement mortar leveling layer, and is unaffected by low winter temperatures or humid weather. The installation speed of a single panel is approximately 3 times that of traditional thin plastering systems, making it particularly suitable for energy-saving renovations of existing buildings and large commercial projects with tight schedules.
Durability and Weather Resistance
The decorative insulated metal panels utilize a PVDF fluorocarbon coating or a high-weather-resistant polyester coating. The panels are self-cleaning, easily washed away by rainwater, and resistant to acids, alkalis, and salt spray corrosion. They will not fade or chalk in coastal or industrially polluted areas. Combined with a waterproof sealing design and anti-corrosion treatment on the back panel, almost no special maintenance is required for the exterior facade.
Rapid Installation and Construction Efficiency
In the construction industry, the construction cycle often directly determines the project cost. Therefore, to improve installation efficiency and save costs, decorative insulated metal panels often use modular installation methods, which can significantly reduce
1. On-site wet work
2. Labor costs
3. Installation time
4. Secondary construction
In addition, it has structural advantages
1. Concealed connection
2. Plug-in structure
3. Lightweight design
For overseas engineering projects, its advantages over traditional construction methods are very obvious
|
Traditional |
Decorative |
|
Long construction period |
Fast construction |
|
High-labor demand |
Reduced labor dependence |
|
High-transportation costs |
Lightweight transportation |
|
Complex post-construction maintenance |
Low maintenance costs |
Concealed Installation Method
Commercial buildings increasingly demand aesthetics and performance, therefore many owners focus on the concealed installation method of decorative insulation metal panels. This involves completely embedding the connecting components inside the panel, achieving a seamless installation effect and presenting a good visual appearance.
|
Advantages |
Specific Manifestations |
Commercial Value |
|
Aesthetics |
No screws, no exposed supports, resulting in a smooth and uniform facade. |
Enhances the commercial image, creating a modern and clean visual impression for high-end retail and office buildings. |
|
Thermal Performance |
Eliminates the metal thermal bridge effect caused by traditional connections. |
Continuous and complete insulation layer effectively reduces energy consumption. |
|
Durability |
Connectors are completely encased in the insulation layer, isolating moisture and corrosion. |
Prevents rust and stress concentration, extending system lifespan |
|
Quick Installation |
Panels are connected via concealed male and female grooves or snap-fit |
joints. Installation speed is faster than traditional exposed systems, allowing for earlier operation. |
|
Safety |
Wind pressure and self-weight are evenly transferred to the keel through embedded connectors. |
Excellent wind uplift resistance, especially suitable for high-rise buildings or commercial complexes in typhoon-prone areas. |
Polyurethane vs. Rock Wool Board-Comparison of Board and Core Material Performance
In decorative insulated metal panel building projects, PU and rock wool are two mainstream solutions. One is known for its high energy efficiency, while the other is renowned for its fire resistance. To help you make a quick decision, the following table directly compares the differences
|
Comparison Dimensions |
Polyurethane |
Rock Wool Insulation Board |
|
Thermal Conductivity |
Approx. 0.022–0.028 W/(m·K) |
Approx. 0.038–0.045 W/(m·K) |
|
Insulation Efficiency |
Excellent |
Good |
|
Fire Rating |
Typically B2 |
Class A (non-combustible) |
|
Density Range |
30–60 kg/m³ |
100–200 kg/m³ |
|
Compressive/Flexural Strength |
High |
Low |
|
Moisture Resistance/Water Resistance |
Closed-cell rate >95%, almost non-absorbent |
Open-cell fiber, easily absorbs moisture |
|
Ease of Installation |
Lightweight, cuttable |
Heavier, produces more cutting dust |
|
Typical Applications |
Cold storage, warehouses, general factories |
fire escape routes, hospitals, high-rise residential buildings |
|
Economy |
Low to medium overall cost |
lower material unit price |
Professional Delivery
|
Packaging Process |
Protective Purpose |
|
Moisture-proof Sealing |
Prevents oxidation of sheet metal edges and condensation rust on the back of metal panels |
|
Corner and Edge Protection |
Prevents binding marks, lifting collisions that could deform the core material or damage the panel paint. |
|
Packaging and Strapping |
Prevents slippage and tipping caused by sea turbulence. |
|
Container Securing |
Prevents overall cargo movement and collapse that could impact the container doors during sudden braking or shaking. |
|
Marking and Documentation |
Guides port loading and unloading personnel for standardized operations and facilitates rapid inspection at the destination port. |
