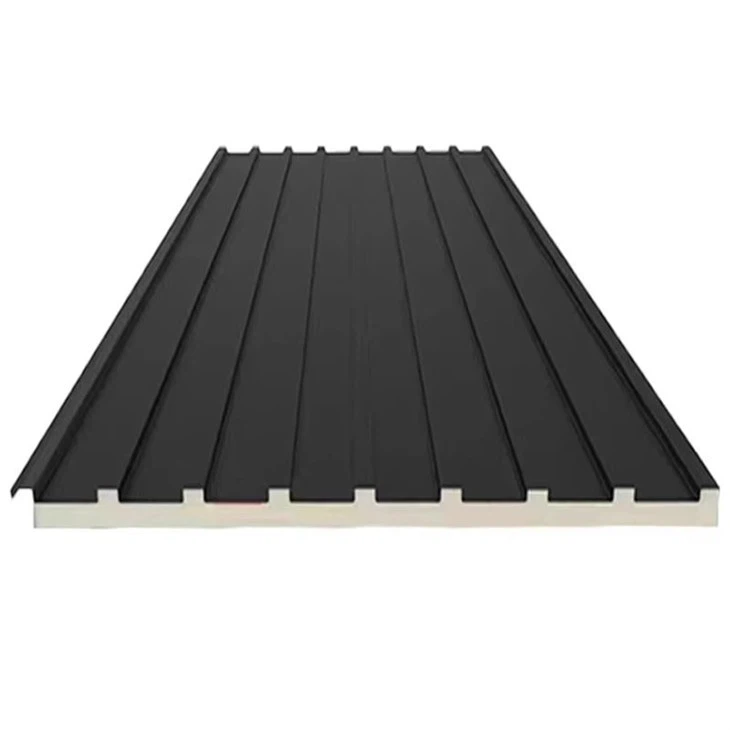

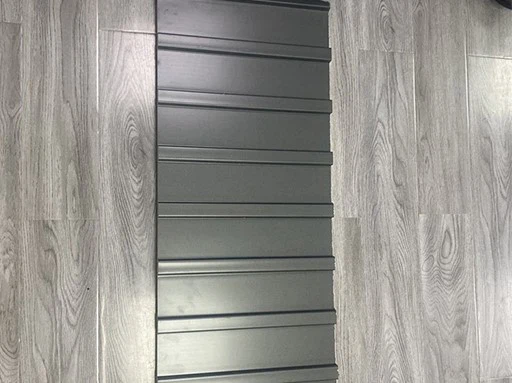

Polyurethane Great Wall Board

polyurethane great wall board use polyurethane as the core material, and the ultra-low material thermal conductivity replaces traditional rock wool composite panels. Winter use can reduce heating energy consumption by 20%, and summer air conditioning energy consumption is significantly reduced.

Send Inquiry

Description

Product advantages of polyurethane great wall board

Ultra low thermal conductivity

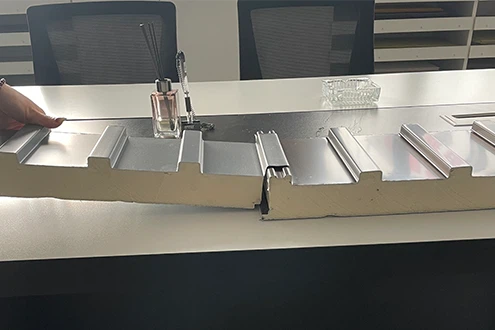

Composite structural layer

We make the panel material into aluminum zinc coated steel plate, which has three times the corrosion resistance of galvanized steel plate. You can choose a thickness of 0.5-1.2mm to protect the outer wall for a longer use time and bring you better wall protection effect.

B1 level flame retardant

The fire resistance level of polyurethane great wall board is the national standard B1 level (national implementation standard GB 8624-2012). At 200 ℃ for 2 hours, there was no significant shrinkage of the core material and no bulging or peeling of the surface layer.

Diversified usage scenarios

widely used in cold storage, factory buildings, sports halls, office building exterior walls and roofs, suitable for extreme temperatures of -50 ℃ to+120 ℃ or high noise areas, with good sound insulation advantages.

Diversified surface decoration

The surface achieves over 100 wall decoration effects through the use of fluorocarbon spraying technology, such as wood grain transfer printing, stone grain film coating, etc., to achieve personalized architectural appearance.

Super strong corrosion resistance

The surface of the aluminum substrate is anodized to form a dense oxide film, which prevents the oxidation of the internal metal layer, isolates water oxygen contact, and forms acid and alkali corrosion resistance.

Product Display

Great Wall Thermal Insulation Aluminum Plate

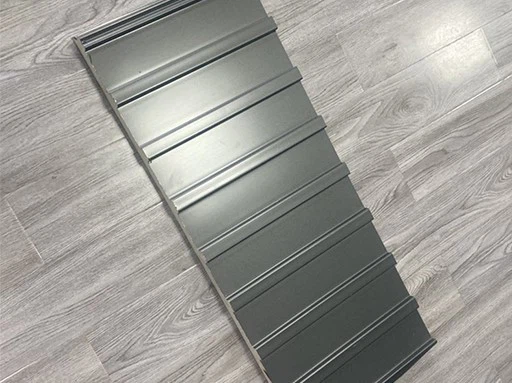

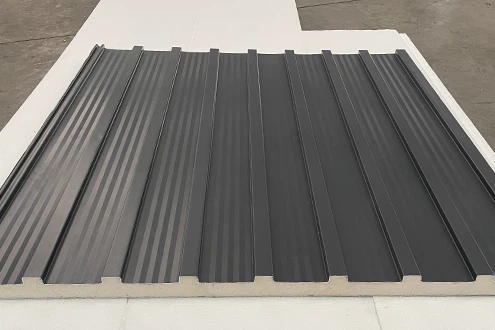

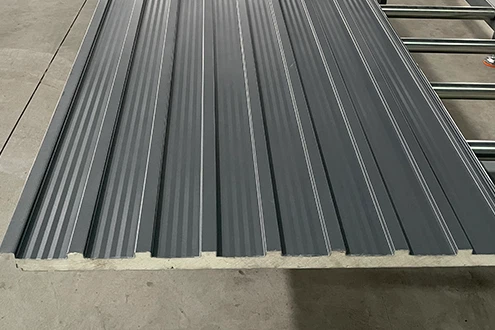

Polyurethane Great Wall Insulation Board

Customized polyurethane Great Wall insulation board

National standard for polyurethane great wall board

This product uses the national standard JG/T 331-2011 Metal Composite Panels for Construction. This standard also applies to composite panels with aluminum plate as the surface layer and core material as the insulation material. The specific performance standards are as follows:

performance	Performance standards
physical property	Bending strength ≥ 100MPa, peel strength ≥ 4.0N/mm
Thermal insulation performance	The heat transfer coefficient must meet the design requirements (usually ≤ 0.5 W/(m ² · K))
fire rating	The core material must meet the requirements of Class A or B1 (GB 8624)

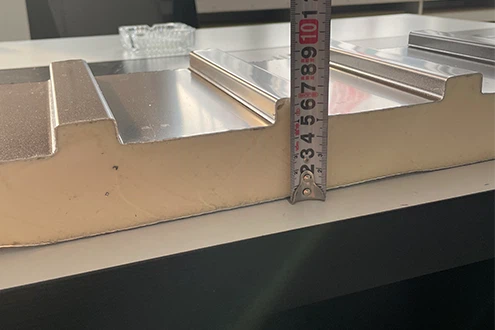

Dimensional standards for polyurethane great wall board

Standard Name	parameter	notes
Thickness standard	Generally 0.2mm, 0.3mm 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, etc	The thicker the board, the higher its strength and rigidity.
Width standard	Common width standards include 1000mm, 1200mm 1220mm, 1250mm, 1500mm, etc	The width requirements for the board may vary depending on different application fields and needs.
length standard	The standards are 2000mm, 2500mm 3000mm, 4000mm, 5000mm, 6000mm, etc.	In the Chinese market, the width generally does not exceed 1500mm and the length does not exceed 6000mm. In the global market, the length of the board is determined according to the usage habits of each country.

Daily cleaning and deep cleaning of polyurethane great wall board

Daily cleaning

1. Use cleaning tools such as soft brushes, sponges, high-pressure water guns, non-woven fabrics or ultra-fine fiber cloths, and prepare neutral cleaning agents if necessary.

2. Pre rinsing: Rinse the surface dust with clean water at a temperature of 10-40 ℃, and spray evenly 0.5-1 meter away from the aluminum plate.

3. Local stain removal: For stubborn stains, a neutral detergent dilution solution can be used, diluted 1:50 times, soaked for 5 minutes, lightly brushed with a soft bristled brush, and rinsed.

4. Drying: Air dry naturally or wipe with clean non-woven fabric, avoid working in direct sunlight.

Deep cleaning and special stain treatment

1. For cleaning oil stains and industrial dust: Use a specialized aluminum cleaner (such as AluClean Pro), dilute it at a ratio of 1:20, and scrub it with water below 60 ℃.

2. Rust: Treat locally with a 5% oxalic acid solution, let it sit for about 2 minutes, immediately rinse and dry.

3. Graffiti and glue marks: Use alcohol or acetone to gently wipe the uncoated area. It is strictly prohibited to use steel wire balls to scrape and avoid damage to the wall.

4. Attention: If necessary, use a high-pressure water gun to control the pressure between 8-12 MPa and test it locally to avoid damaging the insulation layer adhesion.
