PU Sandwich Decorative Metal Panel Fire Resistant Thermal Insulation For Export
Brand & Product Overview Founded in 2018, Jinan Dibaier Environmental Protection Materials Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales, and service of wall panels, decorative metal panels, aluminum insulation and decoration integrated panels, aluminum alloy...
Brand & Product Overview
Founded in 2018, Jinan Dibaier Environmental Protection Materials Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales, and service of wall panels, decorative metal panels, aluminum insulation and decoration integrated panels, aluminum alloy roof tiles, light steel keel villas, prefabricated houses, sentry boxes, and other products.
Since its establishment, Dibaier has adhered to the service philosophy of "Serving the Society, Energy Conservation & Environmental Protection, Convenience & Efficiency, Professionalism & Specialization" and the tenet of "Quality First, Customer-Oriented, Service Wins", striving to provide customers with personalized customized products and services. The company's new wall materials feature thermal insulation, sound insulation and noise reduction, light weight, high strength, simple construction, corrosion resistance, elegant appearance, reusability, long service life, and good weather resistance.
With strong technical strength, standardized management, and improved processes, Dibaier expands the market with professional technology, advanced equipment, scientific management, and high-quality services. Its products are widely used in terminal buildings, high-speed rail stations, airports, high-rise buildings, modern villas, light steel workshops, prefabricated houses, European and American style box transformers, exterior wall renovation of old buildings, mobile and permanent houses in scenic areas, environmental public toilets, and other energy-saving and environmentally friendly buildings, winning wide praise at home and abroad.
Through in-depth cooperation with research centers, innovative production processes, introduction of new equipment, expansion of sales channels, and adherence to the "online + offline" sales model, the enterprise continuously improves product visibility and market share. After the completion of the new Longshan Factory in 2023, the production capacity increased by 30%, the storage space exceeded 3 times that of the initial stage, the sales volume increased by more than 30%, the export volume rose year by year, and the export proportion reached a record high.

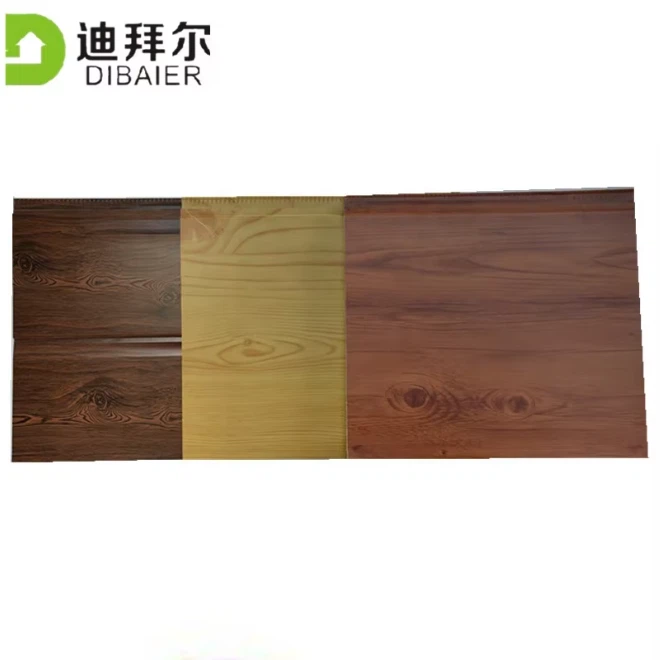

Dibaier's PU Sandwich Decorative Metal Panel is a core product, adopting a three-layer composite structure of "nano anti-fouling color-coated aluminum-zinc-magnesium steel plate + high-density polyurethane core + aluminum foil anti-corrosion layer", manufactured through high-pressure foam curing and precision forming processes. The product combines multiple advantages, with appearances covering more than 20 embossed patterns and hundreds of color combinations, enabling thousands of decorative effects and providing rich choices for architectural design.
Core Product Structure
Adopting a three-layer composite integrated design, the bonding strength between layers is ≥0.15MPa, with excellent peeling performance and no delamination risk
Surface Layer
0.23-0.32mm color-coated aluminum-zinc-magnesium steel plate (SPHC material), treated with nano anti-fouling technology, with self-healing function. The surface coating is high-durable polyester (HDP), the front coating thickness is 15μm (primer 5μm + topcoat 10μm), and the back coating thickness is 5μm, with outdoor weather resistance up to 15 years and no easy fading.
Core Layer
High-density rigid polyurethane (PU) foam insulation layer, with a density of 40-60kg/m³, treated with special flame retardant, and a closed-cell rate of ≥93%, having both excellent thermal insulation and fire resistance.
Bottom Layer
Aluminum foil paper or aluminum foil cloth anti-corrosion layer (2.6 silk - 20 silk thickness), which plays the role of moisture-proof, heat insulation, and blocking water vapor intrusion, selected according to the plate style.
Core Advantages
Super Efficient Thermal Insulation & Energy Saving
The polyurethane core material has a low thermal conductivity of 0.018-0.024W/(m·K), making it one of the materials with excellent thermal insulation performance. The thermal insulation effect of a 16mm thick plate is equivalent to that of a 37cm thick ordinary brick wall, better than that of a 30mm XPS plate and a 50mm EPS plate, which can significantly reduce building heating and cooling energy consumption and achieve energy-saving benefits.
Safety, Fire Resistance & Durability, Corrosion Resistance
The fire rating can be B1 (flame-retardant type) or B2 (combustible type). B1 grade products are difficult to burn and not easy to spread when exposed to fire, and stop burning immediately when the fire source is removed; B2 grade products have a certain flame-retardant effect and no toxic or harmful gases are released during combustion.
The surface aluminum-zinc-magnesium steel plate contains 55% aluminum, 43.5% zinc, and 1.5% silicon-magnesium alloy coating, with strong corrosion resistance. Combined with the closed-cell structure core material, the product's service life can reach more than 30 years, adapting to a wide temperature range of -50℃~150℃.
Light Weight, High Strength & Easy Installation
The plate weight is only 2.88-3.9kg/㎡ (adjusted according to panel thickness and core material grade), with high strength and impact resistance, a compressive strength of 2.0-2.7kg/cm², and a bending failure degree of 58kg, which can effectively resist wind load and snow load.
Adopting the male-female buckle splicing installation method, no complex tools are needed, and it is not restricted by seasons and climates, suitable for construction all year round. The construction efficiency is more than 50% higher than that of traditional materials, greatly shortening the construction period.
Multifunctional Integration & Environmental Sustainability
The independent closed-cell structure of the core layer can achieve a sound insulation volume of more than 24 decibels, effectively blocking outdoor noise. The product's water absorption rate is ≤3%, and combined with the compact concave-convex insertion groove design, it completely solves the problem of wall water seepage and avoids indoor mold.
It has no formaldehyde release, meets the TVOC total volatile organic compound standard, the plate can be flexibly disassembled and reused, the leftover materials can be recycled, and construction waste is reduced during the construction process, in line with environmental protection standards.
Strong Customization Adaptability
Full-dimensional customization is supported: thickness (14/16/20mm for PU material), effective width (360-390mm, about 383mm for standard), length (customizable from 2 meters, 2-6 meters for easy transportation, which can be optimized according to container size); more than 20 embossed patterns including middle groove, elastic coating texture, mosaic, brick texture, wood texture, etc., colors cover RAL standard color numbers, and two-color plates can also be customized (additional charges apply)
Detailed Technical Parameters
|
Parameter Name |
Standard Value |
Test Standard |
|
Panel Thickness |
0.23-0.32mm |
GB/T 12755 |
|
Core Thickness |
14/16/20mm |
GB/T 8813 |
|
Core Density |
40-60kg/m³ |
GB/T 6343 |
|
Thermal Conductivity |
≤0.024W/(m·K) |
GB/T 10294 |
|
Compressive Strength |
2.0-2.7kg/cm² |
GB/T 8813 |
|
Closed-Cell Rate |
≥93% |
Enterprise Standard |
|
Water Absorption Rate |
≤3% |
GB/T 8810 |
|
Fire Rating |
B1/B2级 |
GB/T 20284 |
|
Bonding Strength |
≥0.15MPa |
GB/T 14525 |
|
Operating Temperature Range |
-50℃~150℃ |
ASTM C1334 |
|
Weather Resistance |
≥15 |
Industry Test Standard |
|
Sound Insulation Volume |
≥24分贝 |
GBJ175-1999 |
|
Dimensional Stability |
≤1.5% |
Enterprise Standard |
Application Scenarios
Widely used in exterior wall, interior wall, roof, and ceiling projects of various buildings, the core scenarios include:
Industrial Buildings
Factories, production workshops, logistics warehouses, light steel workshops
Commercial & Public Buildings
Office buildings, shopping malls, exhibition centers, schools, hospitals, airport terminals, high-speed rail stations
Residential Buildings
Modern villas, apartments, light steel keel villas, prefabricated houses
Special Scenarios
Cold chain warehouses, clean workshops, pharmaceutical and food processing plants, exterior wall renovation of old buildings, mobile and permanent houses in scenic areas, environmental public toilets, garbage classification rooms, European and American style box transformers
Packaging & Delivery
Packaging Standards
Panel Packaging: Adopt plastic protective film + carton + strapping packaging, or kraft paper composite cloth packaging, simple packaging. The thickness of 8 pieces/package is about 13-13.5cm, and 10 pieces/package is about 17cm. Customized box LOGO (printed centrally on three sides) is available upon request.
Accessories Packaging: Aluminum alloy accessories are packaged in 20 pieces/package (10 pieces/package for some), with dimensions adjusted according to accessory types. The packaging width is 0.085-0.25m, thickness 0.003-0.16m, and length 3/6m.
Delivery & Transportation
Delivery Cycle: Regular specifications are shipped within 10-15 working days, and specially customized products are shipped within 15-25 working days.
Transportation Adaptability: Support FOB, CIF, CFR, DDP and other trade terms. A 20ft container can load 1500-1600㎡ (2.9m long panels), and a 40ft high cube container can load about 3600㎡ (2.95m long panels). The panel length can be optimized according to container size (recommended 2.9-5.95m).
Quality Assurance: Products pass relevant quality inspections, providing 1-2 years of quality warranty, supporting video technical guidance and online after-sales consultation, and lifelong technical support.
Relevant Accessories
Accessory Types
Aluminum Alloy Accessories: Starter pieces, closing pieces, middle seams, internal and external corners, door and window covers, large corner covers, etc., with optional lengths of 3/6 meters, colors including white, black, and matching colors, and weights of 0.15-0.7kg/m.
Same-Material Accessories: Consistent with the panel material, suitable for external/internal wall corners. Flat-panel types can be made in lengths of 40cm, 1m, 3m, and roller-painted brick-pattern two-color models only support 40cm length.
Aluminum Alloy Same-Material Accessories: Aluminum alloy base material wrapped with the same material panel, combining pattern consistency and structural robustness.
Accessory Advantages
Aluminum alloy accessories are recommended for overseas projects, with moisture and corrosion resistance, avoiding the problem of rapid rusting of same-material accessories in humid environments; all accessories are easy to install, paired with fixing methods such as countersunk self-tapping screws, expansion tube screws, and rivets to ensure firm installation.
Frequently Asked Questions
What are the advantages of PU sandwich panels compared with EPS and XPS sandwich panels?
PU sandwich panels are superior in thermal insulation performance (lowest thermal conductivity), temperature resistance range (-50℃~150℃), and flame retardant effect; EPS panels only have a slight price advantage, with no advantages in thermal insulation and strength; XPS panels have certain characteristics in compression resistance and moisture resistance, but their thermal insulation and temperature resistance are inferior to PU panels. With comprehensive cost-effectiveness, PU panels are more suitable for mid-to-high-end projects.
How to apply for samples? What is the charging standard?
The standard sample size is 20cm×41.5cm, with the first 5 pieces free of charge, and 1USD per piece for more than 5 pieces; samples are packaged with plastic protective film + carton + strapping, and samples of different patterns and colors can be provided upon request.
Can the panel length and color be customized? Is there a minimum order quantity limit?
The length can be customized from 2 meters, with 2-6 meters for easy transportation and no minimum order quantity limit (except for customized colors); regular colors support RAL standard color numbers, customized special colors have minimum order quantity requirements, and two-color panels require an additional 2 yuan per square meter.
How to choose between bottom aluminum foil paper and aluminum foil cloth? Is there an additional charge for fire-resistant bottom layers?
Aluminum foil paper is suitable for brick-pattern, flat-panel, and grooved panels, while aluminum foil cloth is suitable for Great Wall panels; the default bottom layer is not fire-resistant, and an additional 1 yuan per square meter is required for fire-resistant type.
