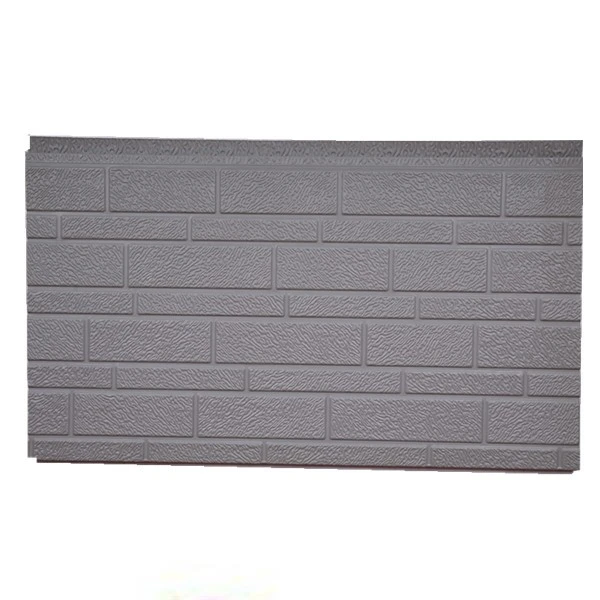

Decorative Insulation Panels
Metal carved boards mainly have the following four core energy-saving technologies: special aluminum zinc plated steel plate, hard foaming polyurethane, reflection, and air layer.
Products Description

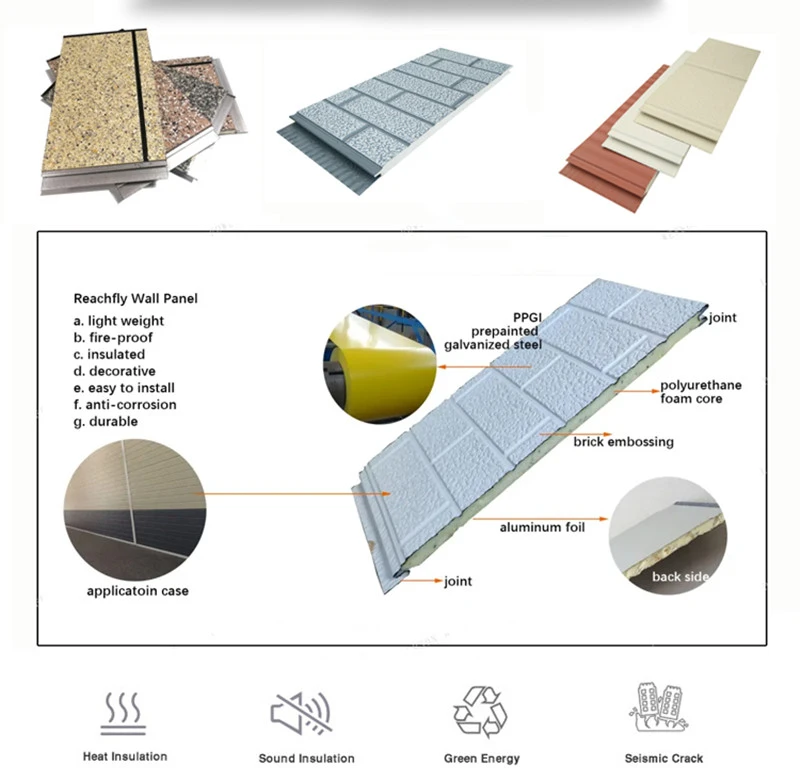

The surface is a high-quality colored embossed decorative metal plate treated with high weather resistant polyvinyl chloride paint baking process, the middle layer is a hard density polyurethane foam insulation and heat insulation layer treated with flame retardant, and the bottom surface is an aluminum foil protective layer that plays a role in insulation, heat preservation, and moisture prevention. The decorative insulation panels has characteristics such as insulation, waterproof and flame retardant, lightweight and earthquake resistant, convenient construction, sound insulation and noise reduction, green and environmentally friendly, beautiful and durable. Its panel assembly method is simple, practical, and not limited by the environment. Therefore, installation and use are very safe and convenient, suitable for all seasons.
Exterior decorative insulation panel also have good energy-saving and thermal insulation effect . Imported equipment are adopted to produce such exterior decorative insulation panel. With high quality, high standards, and stable performance, metal sidings are the wise choice for energy-saving renovation of exterior walls.
Products specification
|
Test Items |
Test Results |
|
Surface density(core material) |
42kg/m3 |
|
Compressive strength(core material) |
295kpa |
|
Thermal Conductivity |
Average temperature:10℃ 0.022W/(m-k) |
|
Average temperature:25℃ 0.024W/(m-k) |
|
|
Water absorption |
0.8% |
|
Vertical tensile strength(siding) |
1.6kpa |
|
Flexual capacity(siding) |
Vertical 5.44Mpa |
|
Horizontal 3.88Mpa |
|
|
Salt spray resistance(steel sheet) |
No damage within 500h(neutral salt spray) |
|
Acid resistance(steel sheet) |
No abnormality within 24h(5% sulfuric acid) |
|
Alkali resistance(steel sheet) |
No abnormality within 24h(5% sodium oxychloride) |
|
High temperature resistance(steel sheet) |
600℃ |
|
Percentage of close area(core material) |
99.70% |
|
Al-Zn coating content |
55-57g/m2(55% aluminum,43%zinc) |
|
Wind pressure resistance(siding) |
10kpa the sample is not damaged |
|
Horizontal firing(core material) |
HF-1 |
|
Combustion performance |
Grade B |
|
Heat transfer coefficient |
1.50W (m2.K) |
|
Airborne sound insulation |
25 dB |
|
Formaldehyde emission(siding) |
No-detected |
|
Fluorescent UV lamp aging(steel sheet) |
No abnormality in appearance |
Products colors
Products advantages
1. Environmentally friendly and durable, pollution-free, with stable chemical and physical structures that do not decompose and mold
2. Shock resistant and crack resistant, with light weight, high strength, and good impact resistance, reducing the burden on the building itself
3. Highly decorative, the combination of realistic relief patterns and rich colors provides greater space for architectural design
4. There are a variety of designs and colors, including over 100 varieties such as brick, stone, and marble patterns, and more than 50 colors for you to choose from
5. Widely used in various fields, including renovation of old buildings, indoor and outdoor decoration, and various new buildings. It can be used as decorative exterior insulation panels, ceiling panels, with a long service life. The outer layer is coated with aluminum zinc steel plate, without considering issues such as rust or peeling
6. The best cost-effectiveness is achieved, as the cost of this board project is one-third of that of the aluminum plastic curtain wall project, and the decorative effect is excellent.
accessories
Each product has strict testing procedures,
from the selection of raw materials to
product
processing and production, product
quality testing to packaging, shipping,
every detail is perfect.
FAQ
1.What is the minimum order quantity?
100 square meters for decorative insulation panels.
2.What is delivery time?
7-14 days after deposit,Except for public holidays.
3.How can you guarantee the quality?
We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .
4.How long can I get a quote?
The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
5.Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients.
6.Can you provide OEM service?
Yes,we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.
