Fireproof Aluminum Composite Board

Fireproof aluminum composite panel for sale

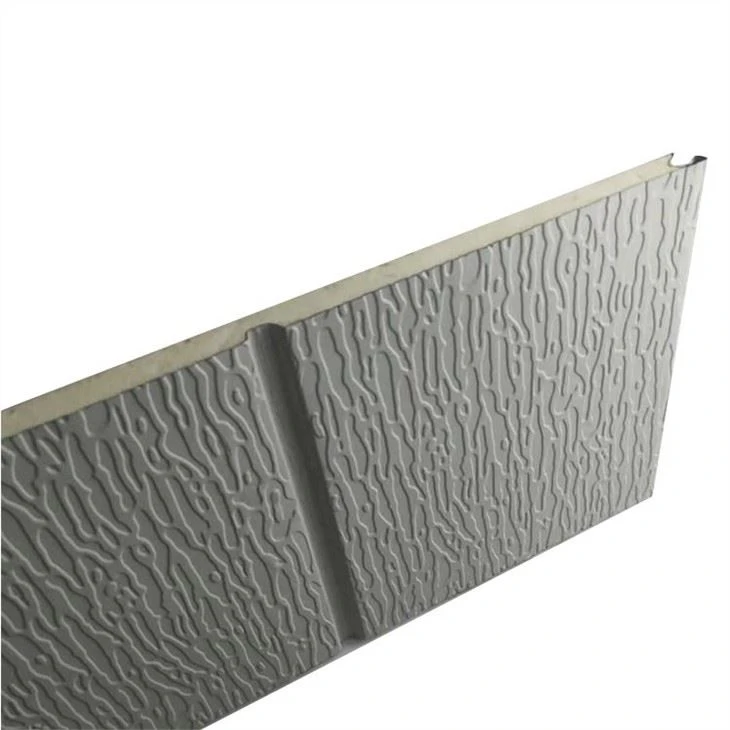

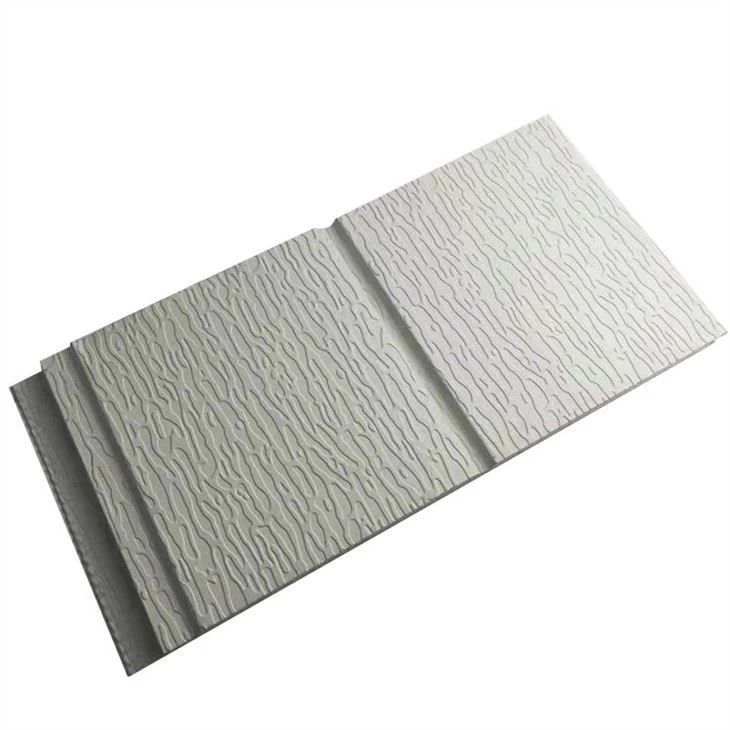

Metal carved aluminum-zinc composite insulation board, metal embossed surface composite insulation board, fireproof aluminum composite board, referred to as metal carved board. It is formed by roll forming of metal embossed plate on the outer surface, after high pressure coating of special resin, filling with rigid foam, and pasting aluminum foil paper. The metal engraved aluminum-zinc-plated thermal insulation board is a new type of wall building material developed in recent years. Its outer layer is made of aluminum alloy plate, aluminum-zinc-plated steel plate and other metal panels. Rolled into patterns of different styles, or after secondary coating, painted into a variety of colors to form a variety of patterns such as: brick pattern, splatter pattern, water ripple, wood grain, gravel, fine stone pattern, etc. Appearance requirements of architectural shapes and colors to achieve a certain artistic effect.

The thermal insulation material in the middle of the board is usually polystyrene foam (XPS, EPS) and polyurethane foam (PU, PIR), and its interior is an independent closed cell structure. The aluminum foil paper pasted on the back can effectively reflect the heat source and play the role of heat insulation, heat preservation and moisture resistance. Concave-convex plug-in and slot-type combination, the construction is very simple. Metal carved aluminum-zinc composite insulation board is a kind of excellent performance building material with high compression resistance, moisture resistance, low thermal conductivity, beautiful appearance, durability, energy saving, convenient construction and environmental protection.

Product Parameter

Product advantages

1. Noise reduction, quiet and comfortable

The core material in the middle of the metal engraved board is a thermal insulation and sound insulation layer composed of high-density polyurethane foam, and its interior is a separate closed bubble structure, which has a good sound insulation effect. It is suitable for small buildings, hospitals, schools and other buildings near the noise area, effectively reducing outdoor noise from entering the room and keeping the indoor environment quiet and comfortable.

2. Green environmental protection and durable

Fireproof exterior wall panels has stable chemical and physical structure, will not decompose mildew, no radiation, pure, green and environmental protection. The board can also be flexibly dismantled and then reused and installed on other buildings, and the leftover scraps from the construction can also be recycled and reused, which greatly reduces construction waste during the construction process. It is a high-quality, high-performance environmentally friendly product. The exterior wall insulation and decoration integrated board is easy to clean, durable and has a long service life.

3. Strong decoration and more choices

In order to provide customers with more choices, Dibaier has launched more than 100 combinations of embossed patterns and colors to give more room for architectural design. The luxurious and beautiful decorative effect makes the building highlight the grade and taste. Simple and flexible disassembly and assembly methods make it easy to replace the wall design. Colors can also be made according to special customer requirements. A variety of colors and embossed exterior wall insulation and decoration integrated boards can be used together to form an ingenious and varied style combination.

4. Wide range of applications

Fireproof wall panel can be widely used in municipal construction, small buildings, office halls, villas, garden attractions, renovation of old buildings, guard booths and many other engineering fields. The building materials are not only suitable for newly-built brick-concrete structures, frame structures, steel structures, light-body buildings and other types of buildings, but also for the decoration and energy-saving renovation of existing buildings, as well as indoor and outdoor decoration. External wall insulation and decoration integrated board is becoming the choice of more and more wall insulation decoration building materials

Production details

The fireproof and waterproof decorative wall panels is a kind of integrated wall panel siding, and it also belongs to the sandwich panel for thermal insulation and decoration. The treated hard high-density polyurethane foam thermal insulation short thermal layer, the bottom surface is an aluminum foil protective layer that plays the role of thermal insulation and moisture-proof. The special structure makes the metal carved board have thermal insulation, fireproof, sound insulation, moisture-proof, easy to clean, and light texture. quality, easy installation, etc.

Product installation

The first step: the preparatory stage When the fireproof decorative wall panels and its accessories are ordered, it is necessary to prepare the tools for installing the plate and accessories, mainly shrinking screws, dovetail nails, pistol drills, air nail guns, markers, tape measures, erasers Hammers and cutters, etc.

Step 2: Install the base of the accessories Before installing the metal engraved board, install the base of the plate accessories, mainly including starting parts, closing parts, wrapping, middle seams and yin and yang corners.

Step 3: Install the plate After installing the base of the accessories, install the first metal carved plate horizontally from top to bottom. All the plates must have the female port facing down and the male port facing up. After installing the first board, use expansion screws or dovetail nails to stabilize it on the wall (it is recommended to fix a nail every 60 cm), and then the female port of the second board is aimed at the first board. Hold the male port of the board downwards tightly, and at the same time use a rubber mallet to buckle the interface of the two boards to ensure that the connection between the two boards is sufficiently tight, and then use expansion screws or dovetail nails to connect the second board. Fix it to the wall, and finally install the rest of the boards in the same way.

Step 4: Install the accessory cover After all the metal carved panels are installed, press the accessory cover firmly under the base. If it is an accessory of the same material, it can be fixed on the wall with screws, and finally sealed with waterproof glass glue.

Step 5: Tear off the protective film of the metal carved board surface

Our Factory

Our factory covers an area of 2,000 acres and can produce 6,000 square meters of fire-resistant aluminum composite panels and other types of metal carved panels every day. If you place an order, our factory will complete the construction period on time and deliver the goods to you

FAQ

1. When can I get the price?

Usually we quote within 24 hours after we get your inquiry.

2. How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready

for delivery in 1-3 days. The samples will be sent to you via express and arrive in 3-5 days.

3. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Always 25-28days based on general order .

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
