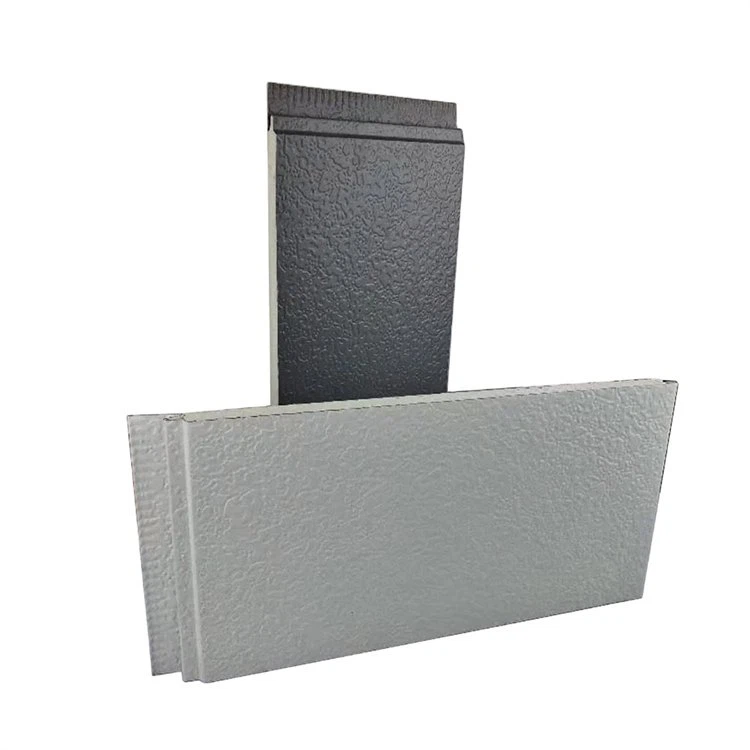

Siding Sandwich Panel

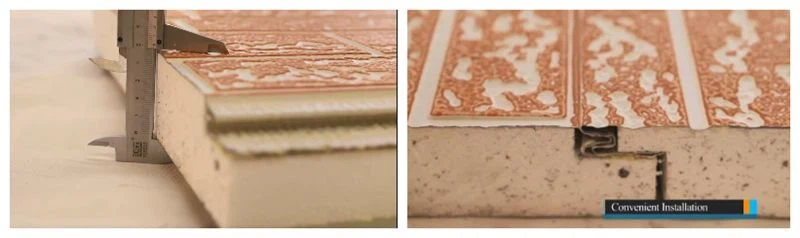

Siding sandwich panel is a new kind of environmental protection material,its double-sided non-woven fabrics are specially treated to ensure good bonding between layers. PU hard foam insulation layer in the middle adopts advanced mixing and cloth technology, with fine bubble holes, uniform density, and reliable guarantee of strength and heat insulation performance.
Siding sandwich panel
Product introduction
Siding sandwich panel is a new kind of environmental protection material,its double-sided non-woven fabrics are specially treated to ensure good bonding between layers. PU hard foam insulation layer in the middle adopts advanced mixing and cloth technology, with fine bubble holes, uniform density, and reliable guarantee of strength and heat insulation performance. exterior siding sandwich panel belongs to hard foam material, made of high-performance resin and foaming agent, it is light in weight,low thermal conductivity and aging resistance.
Product specification
Thickness | 14mm/16mm/20mm | Fire resistance level | B1/B2 |
Width | 383mm | Size tolerance | -/+2mm |
Length | 2m-6m | Tensile bond strength | 0.17MPA |
Surface steel | Galvalume,C type | Wind load value | 9KPA |
Steel alloy composition | Aluminum 55%,Zinc 43.5%,Silicon1.5%,ect | Package | 10pieces/carton 8pieces/carton |
Steel coating | HDP>30um | Package Size | 4010mm*41mm*170mm(10pieces/carton) |
Core material | Polyurethane,40kg/m3 | OEM | Logo and panel size |
Thickness of bottom material | 0.026mm | Container load | 20GP:1600sqm(panel length 1.82m) |
Closed cell rate | 90%-95% | After-sale Service | Online training,Online technical support |
Water absorption | ≤3% | Port | QINGDAO |
Panel weight | 3.5-3.7kgm2 | Payment | T/T,L/C |
R-VALUE | 0.55㎡*k/w | Brand | DIBAIER |
Heat conductivity | 0.024w/m*k(in theory) | Dimensional stability | ≤1.5% |
Density | 40-60(kg/m3) | Room temperature | -196℃+120℃ |
Compressive strength | 200-270(kpa) | Oxygen index | ≥26% |
Product advantage
The effect of insulation is equivalent to the effect of 4cm thick polystyrene board.
The siding pu sandwich panel is light in weight and convenient in handling and transportation and fast in installation.
Environmental protection and energy saving, products without any pollution.
High hardness, good impact resistance.
How to install siding sandwich wall panel?
1. Special tools/raw materials
Electric hand drill, expansion bolt, self-tapping screw; Carved metal plate.
2. Installation process
(1) First put the pu sandwich panel on the wall, and then plug in the hand drill, and then use the hand drill to connect the board and open a hole in the wall.
(2) Then install expansion bolts at the holes, and then fix them with self-tapping screws.
(3) Put another piece of wood on the top of the fixed decorative siding sandwich panel and insert the concave groove of the other board into the fixed fixed furniture plate slot,then repeat the operation .
(4) After the installation, the soundproof siding sandwich panel is beautiful and generous, heat insulation, fire safety, waterproof, sound insulation and noise reduction.
Product application
Exterior siding sandwich wall panel can be widely used in new buildings and repair buildings and can also be used in municipal construction, apartment, villa, landscape, old building transformation, doorman and other engineering fields without the need for complex pretreatment of building walls. In addition, siding sandwich board is also suitable for the existing building energy saving transformation and indoor, external decoration.
Our customers
The customer came to our factory for a visit
FAQ
1.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
2.How can I get a insulation siding sandwich panel sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we would like to send sample from our Chinese factory
3.What kind of files do you accept for printing?
PDF, Core Draw, high resolution JPG .
4.Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing.
5.What is your terms of delivery?
EXW, FOB, CIF, etc.
6.What about the lead time for mass production?
15-20 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.
7.How long can I expect to get the siding sandwich panel sample?
3-5 working days for siding sandwich panel samples.
