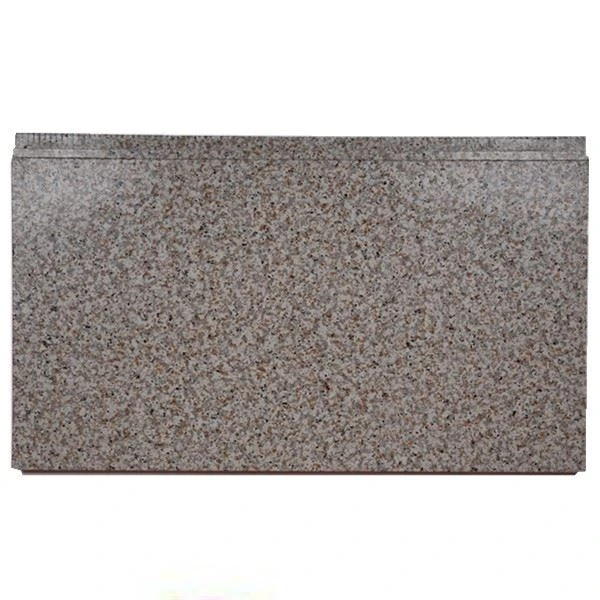

Decorative Foam Insulation Panels



Decorative foam insulation panels is a light building material, with metal embossing on the surface, brick pattern, stone pattern, water pattern, tile pattern, mosaic pattern and other patterns after 7 times of special resin coating, more than 50 colors are available, and it will not fade for 15 years . The aluminum foil pasted on the back can effectively reflect the heat source and play the role of heat insulation, heat preservation and moisture resistance. The polyurethane foam between the plates forms a heat preservation and heat insulation layer. The interior is an independent closed air bubble structure, with concave and convex matching button groove structure Construction is very simple.



Metal decorative wall insulation panels have been widely used in recent years. The material is mainly made of environmentally friendly raw materials (the inner polyurethane layer is the same material as the inner insulation layer of refrigerators and air conditioners). It is non-toxic, pollution-free and odor-free, giving the building green protection and decoration.



The surface of the metal decorative insulated wall panels is 03 thickness galvanized steel plate (containing 55% aluminum), the middle is rigid polyurethane foam, the back is aluminum foil cloth (with moisture-proof effect), the total thickness of the board is 1.6 cm, 2 cm, 5 cm Multiple thicknesses; 3 types of width, 38 cm wide, 38.3 cm wide, and 39.3 cm wide. The length can be customized according to customer requirements.



The decorative foam insulation panels has the function of decoration and heat preservation. In appearance, through embossing and baking galvanized sheet, more than 100 kinds of artistic decoration effects such as mahogany, brick, bark, cultural stone, marble, and mosaic can be formed; The problem is that the exterior wall decoration and heat insulation are carried out simultaneously; the house decorated with metal carved panels, because of its good heat insulation effect, in summer, the indoor temperature is 3-5 degrees lower than that of ordinary buildings, and it only takes about 5-8 years Over time, the cost of building air-conditioning and refrigeration savings can recover the cost of materials.





Metal exterior insulated wall panels are easy and fast to install, not affected by seasonal climate and geographical environment, and suitable for all seasons. It can not only speed up the construction progress, but also reduce the construction cost and construction cost. Compared with other decorative panels, it has absolute advantages.

In addition to the advantages mentioned above, metal carved panels also have good thermal insulation properties, which can effectively reduce heating and cooling energy consumption, not only save resources, but also reduce energy expenditure pressure for users, and have high cost performance and applicability.
In addition, the metal carved board also has the functions of light weight, high strength, light weight and shock resistance. The light weight reduces the burden on the building, the high strength can withstand large impact, and it has good resistance to geological disasters such as earthquakes. It is strong and safe to install on a light steel structure, and it can be used with confidence.



1) The origin of the name of the manufacturer of the metal engraving plate
The embossed pattern on the surface of the metal carved board looks like various building materials, such as brick, wood, stone and so on. Moreover, these patterns look very real, feel uneven, and feel like they are engraved on the surface of colored steel plates, so they are called metal carved plates. In simple terms, the metal carved panel gets its name from its appearance.
2) "carving" technology of metal carving board

According to reports, the top layer of the metal carved panel is an aluminum-zinc color steel coil. Color steel coil is actually a kind of galvanized aluminum-galvanized steel coil sprayed with fluorocarbon coating after special treatment. The surface is not only sprayed with various colors, but also sprayed with various patterns, such as imitation marble, imitation log, decorative painting, etc. Before these color steel coils enter the metal cold roll forming machine for socket forming, they will enter another equipment-metal embossing machine.
The metal embossing machine consists of upper and lower rollers, and the surface of each embossing roller will be carved into various patterns through metal processing according to needs. When the colored steel plate enters the embossing machine, the surface will roll onto various embossed patterns or textures carved on the embossing roller.





Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.



Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness,coating and the number of tons you need to purchase.



Q:What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.



Q:Does the product have quality
inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.



Q:How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging
and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
